"SEBCO" HUBS / MOYEUX / MAZES

Steel hubs , BCP finish, steel balls-52100 grade. Spindle & finish to customers specification. Threads for freewheel fitting 1.370" x 24 TPI BSCY or M 34.7x1 mm.



Model Description No of holes spoke 14G Spoke hole PCD mm Hub thread Length mm Spindle size 26 TPI BSCY

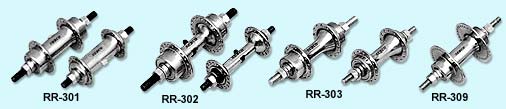

RR-301 Thick Barrel open end (Rear) 28, 36, 40 44.5 12 3/8"x165 mm
Thick Barrel open end (Front) 28, 32, 36 41 3/8"x140 mm
RR-302



 Thick Barrel open end (Front) 16, 20, 28, 32, 36 35 5/16"x140 mm
Thick Barrel open end (Rear) 16, 20, 28, 32, 36, 40 44.5 12 3/8"x165 mm
RR-303 Conical open end (Front) 28, 32, 36 41 3/8"x140 mm
RR-303



 Conical Rear 28, 32, 36 44.5 12 3/8"x165 mm
Conical Multispeed(6-speed) 28, 36, 40 44.5 10 3/8"x165 mm
3/8"x170 mm
3/8"x175 mm

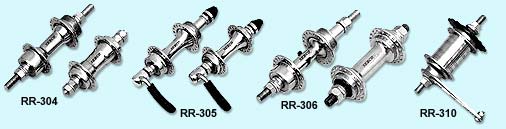

RR-304





 Parallex, open end (Front) 28, 36, 40 41 3/8"x140 mm
Parallex, open end (Rear) 28, 36, 40 44.5 12 3/8"x165 mm
Parallex, open end  6 Speed (Multi) Rear 28, 36, 40 44.5 10 3/8"x165 mm
3/8"x170 mm
3/8"x170 mm
RR-305



 Conical open end front with quick release 28, 32, 36 41 3/8"x108 mm
Conical Multi Speed (6-Speed) with quick release 28, 36, 40 44.5 10 3/8"x138 mm
RR-306 Hub Pus Pus Forged 28, 36 15/32"x160mm
RR-309 Rickshaw Hub 64 hole 64 3/8"x180mm
RR-310 Coaster Hub 28, 32, 36 3/8"x180mm


Model Description No of holes spoke 14G Front Rear Thread
RR-310-a Aluminum Hub
Open End with or withour spacer.		 30, 10 to 14G 3/8" x 5.1/2"
, 36 Hole: 14/12G		 3/8" x 6.1/2/7", 36 34.8 x 24 TPI BSCY.

RR-321, 322, 323 : "SEBCO" HUB QUICK RELEASE SKEWER
Front : 5mm x 121, 126, 130mm
Rear : 5mm x 155 & 160 mm

RR-325 : Hub Step
5/16" & 3/8" x 26 TPI length & colour to order

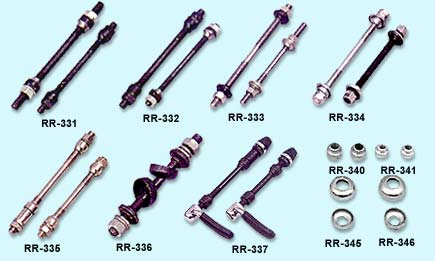

RR-331, 332, 333, 334,335, 336 : "SEBCO" HUB AXLES
FRONT & REAR WITH CONES, NUT & WASHER
Available in 26TP1 BSCY or ISO-metric 1mm pitch threading, in different sizes & types as per customer, specification In ZP / NP/ Black finish.
Front : 5/16" x 5½", 6"
Front : 3/8" x 26TPl x I40mm, 3/8" x 26TP x 165mm x 170mm
Set of 9 & 11 pcs. with groove also available.

RR-340,341 : "SEBCO" HUB CONES
Case hardened available in different shapes and sizes as per customers specification in ZP/NP/Black finish.
Threading : 26TPI BSCY (or ISO metric 1mm pitch)
Raleigh type: Front: 5/16"x26TPI BSCY, Rear: 3/8" x 26TPI BSCY
Philliph type : Front : 3/8" x 26TPI BSCY. Rear
French Front : 8mm. Rear : 9.5mm
Italian type : 3/8" x 26TPI BSCY

RR-345, 346 : "SEBCO" HUB CUPS
Available in different sizes as per customers specification in Self/NP finish with & without collar.
Front with collar :Outer dia : 23.8, 24.5 & 29.2mm
Hole :5/16", 3/8", 11mm.
Rear with collar : 29,29.2mm, 29.5mm, 30mm, 30.5mm
Hole :3/8, 10mm, 11mm, 12mm.
Front without collar : Outer dia 23.8, 24.5, 25, 29 mm.
Hole dia: 5.16", 3/8,11 mm
Hub cup rear without collar
Outer dia : 29, 29.2, 29.5, 30, 30.5
Hole dia : 3/8", 10mm, 11mm, 12mm
